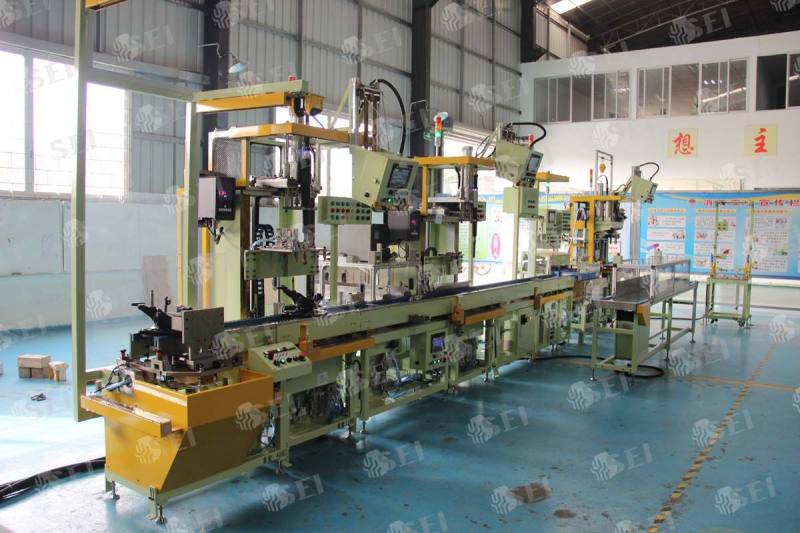

Vehicle brake assembly line

 Description

This line is for special purpose,  which includes 11 machine: ball joint assembly machine, brake discs feeding machine, vibrating inspection machine, nuts fasten machine, dustproof wheel sheld nuts fasten platform,  wheel sheld fasten machine, calliper assembly machine, rotate table, hoisting platform, ball joint slider, and main slider.  This assembly line is mainly use for vehicle brakes ball joint, calliper, dustproof, nuts assembly of  wheel sheld, and torsion inspection and vibrating inspection.


 Specfication


Airpressure

0.4-0.6MPa

CT

20 s/piece

Power supply

Single phaseAC220V 50HZ

Power

15kW

Control power

outputAC220V/50HZ、DC24/inner

Power

1KW

Control power

DC24





 Data comparation


Item

Manual mode

Machine mode

Cycle time

35s/pcs

20s/pcs

Operator

8

1

Description

1. Low working effciency,
2. each process is isolated
3. highly labor force.
4. Unstable quality.

1.Integrated all process into one line, semi-automation, manually loading parts only.


2. improve productivity about 70%,and reduce the defect rate to 2%.



截屏2020-10-13 上午9.02.04.png



 Advantage

1. High working effciency, productitivty has improve 70%.

2. This line is semi-automation line,flixiable fit with multiple product, and compact layout.

3. Core parts are import from Japan, German. ensure the performance and long lifespan.
