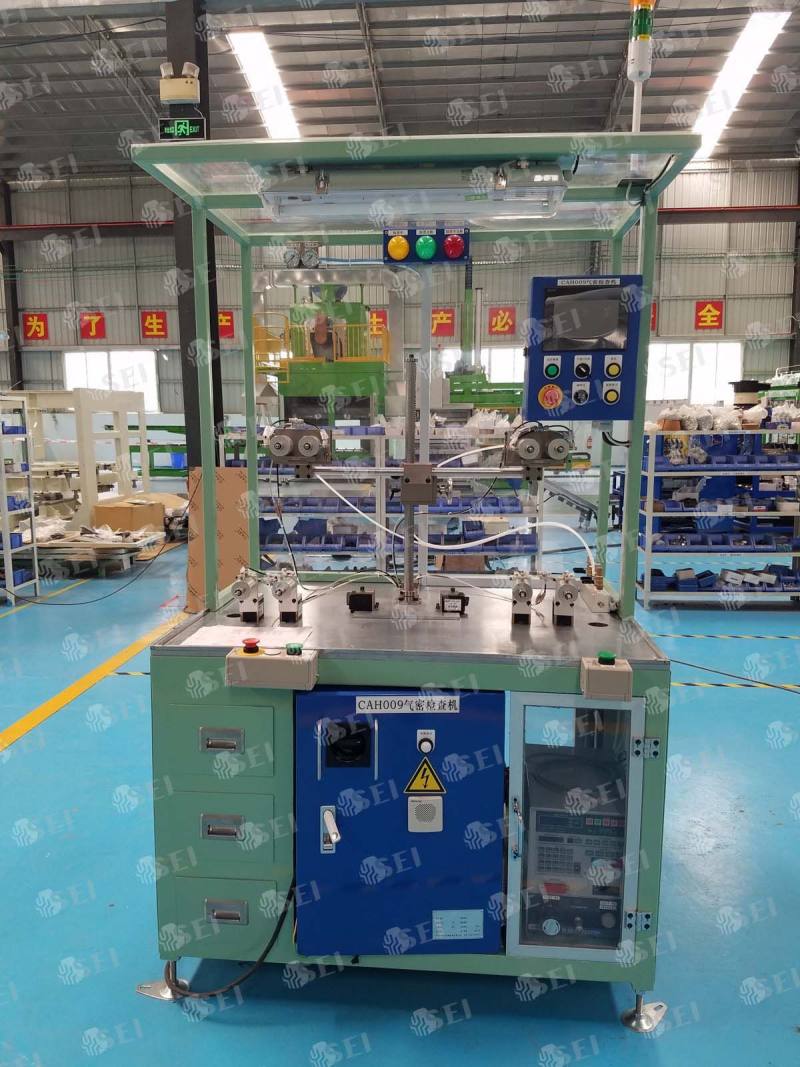

High-mid airtightness inspection machine
 Description

Machine consist with mechanical structure, airtight and airtightness tool. Inspect the parts airtightness.


 Specfication


Airpressure

0.4-0.6MPa

Dimension

1200mm×900mm×2000mm

CT

50s/pcs

Weight

400Kg

Power Supply

single phase AC220V 50HZ

power

1kW

Control power

Output AC220V/50HZ、DC24/inner




 Data comparation


Item

Manual mode

Machine mode

Cycle time

120s/pcs

50s/pcs

Operator

4

1

Description

1. Low working effciency
2.Cannot ensure the data precision.

1.Hight working effciency
2.Reliable system and ensure product quality.






 Advantage

1. High productitivty.

2. Airtightness tooling quick change design

3. Tooling angle can be adjust within 180 degrees

4. Pressure selection：Switch between High pressre0.98MPa and mid-pressure 0.54MPa
