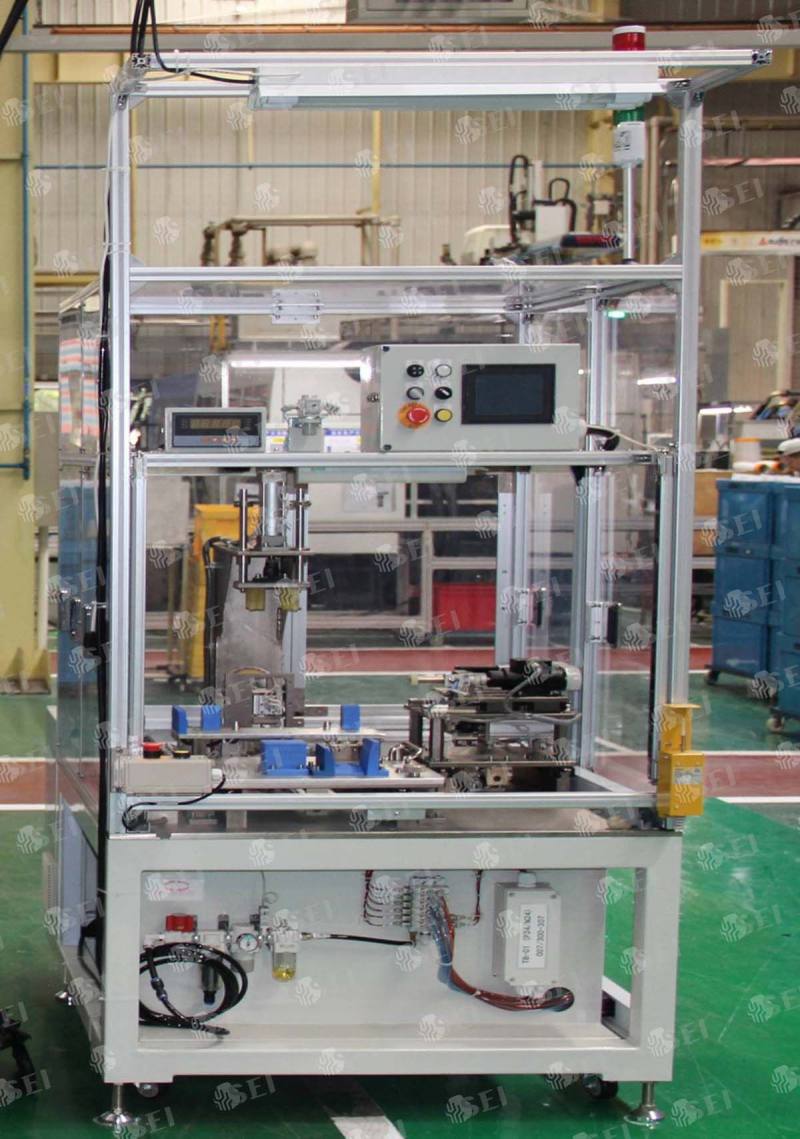

Torsion inspection machine

Description

This machine is for special purpose.  Machine will inspect the mechanism gear with gear whether is grip completely, by using motor running in positive and negative direction to detect it, and the torsion inspection system will estimate the data and upload to PLC to control. Then after the system get the result, the print station will mark an φ10 on the qualify parts.


 Specfication

Airpressure0.4-0.6MPa
Dimension1000mm×1200mm×2300mm
CT30s/pcs
Weight300Kg
Power Supplysingle phase AC220V 50HZ
power1kW
Control poweroutpur AC220V/50HZ、DC24/inner




 Data comparation


ItemManual modeMachine mode
Cycle time50pcs/hr/per120pcs/hr/per
Operator41
Description1. Low working effciency
2. Manual detect and print code.
3. Low effciency and cannot ensure the precision. . 		1.Hight working effciency
2.Highly repeatibility precision and reliable quality.






Advantage

1. High productitivty.

2. Reliable system and design, high level safety design and long life-span.

3. Labor saving.

4. Highly repeatability precision,  self-diagnose,
