Description

Industry:

Automotive

Technical capability:

Robotic integration

Welding application

Assembly solution

 Challenge:

Customer request the

System can wrapped the

A-pillar plastic with the

Leather/fabric by welding

process.

Solution:

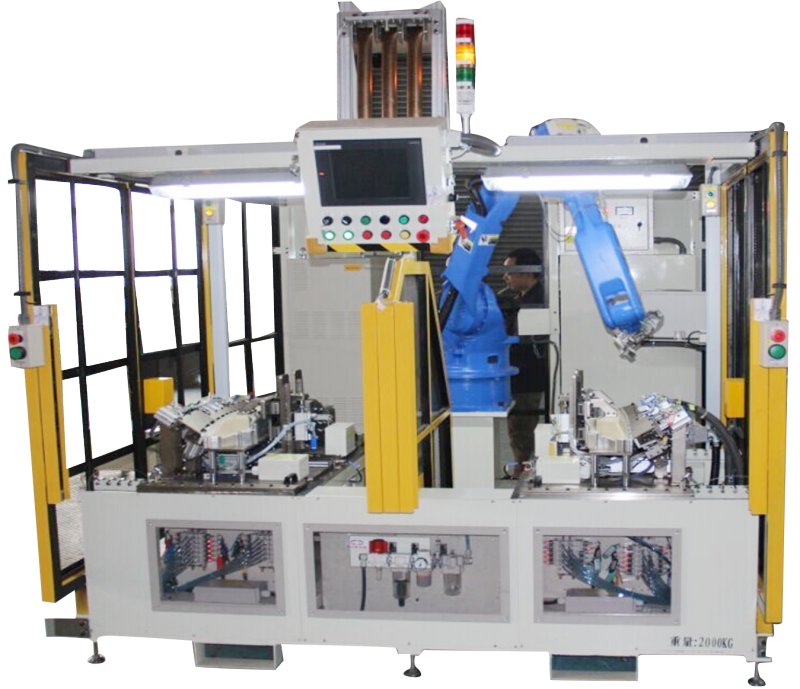

We have integrated a six axis robot with ultra-sonic welding head to do the welding process. The mold base with custom design has mechanism to do the pressing  process, when the product place on the mold, the mechanism will press the plastic with the leather/ fabric then robot will do the welding process. Finally the plastic is wrapped  with the leather/fabric automatically.

Results and Benefit

Robotic operation maintain high quality rate and efficiency.

High quality demand of wrapping edge, the system perfectly settle

The quality issue, and improve productivity about 40%.

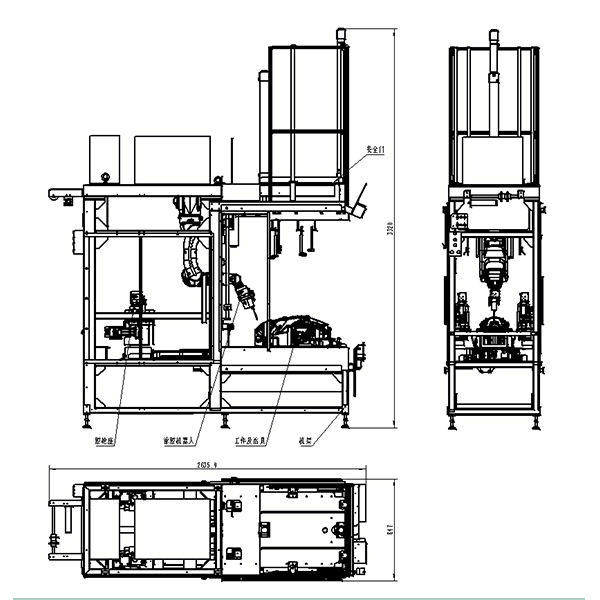

 Specfication

 Data comparation

 Advantage

1. Double working station design, can fit with two different working mode(Single or double door)

2. Massive improve productivity, reliable functionality.
